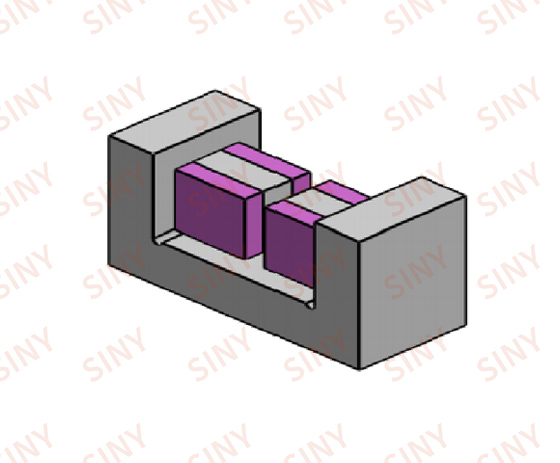

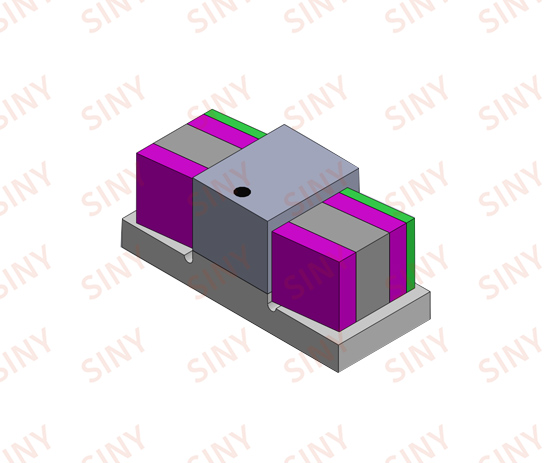

Free Space Isolator Array-2CH

High Isolation
Low Insertion Loss
High Reliability
RoHS complaint
Compact Size
Optimized for different wavelengths

Features

  • High Isolation
  • Low Insertion Loss
  • High Reliability
  • RoHS complaint
  • Compact Size
  • Optimized for different wavelengths

Application

  • Data Center
  • 100G--400G Silicon Optical Module

Specifications

Product Center Wavelength (λc)(nm) Isolation
(λc 23℃)(dB)
Insertion Loss
(λc 23℃)(dB)
Clear Aperture(mm) Operating Temperature
(℃)
Storage Temperature
(℃)
Max. Optical Power
(mW)
Single Stage Single Stage
2CH FSI Array 1342, 1577 or
1270, 1330
>30 <0.3 Φ0.4~0.8 -40 to 85 -40 to 85 300
2CH FSI Array 1310 >30 <0.3 Φ0.4~0.8 -40 to 85 -40 to 85 300
2CH FSI Array
(with 1/2 waveplate)
1342, 1577 or
1270, 1330
>30 <0.35 Φ0.4~0.8 -40 to 85 -40 to 85 300
2CH FSI Array
(with 1/2 waveplate)
1310 >30 <0.35 Φ0.4~0.8 -40 to 85 -40 to 85 300
