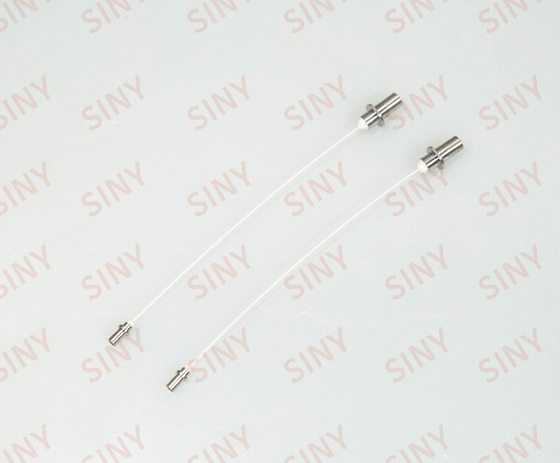

Pigtial receptacle with FSI

High Reliability and Stability
IEC Compliant
RoHS Compliant
Various dimensions available
Design according to customer’s requirements

Features

  • High Reliability and Stability
  • IEC Compliant
  • RoHS Compliant
  • Various dimensions available
  • Design according to customer’s requirements

Application

  • Transmitter Optical Sub Assembly(TOSA)
  • Bi-Directional Optical Sub Assembly(BOSA)
  • GPON/EPON OLT Module
  • Optical transmitters and transceivers
  • Optical sensor
  • Laser diode packaging
  • Tunable Laser Module

Specifications

Product Center Wavelength
(λc)(nm)
Isolation (λc 23℃)(dB) IL (λc -40-85℃)(dB) Isolation (λc 23℃)(dB) IL (λc -40-85℃)(dB) Clear Aperture(mm) Metal Material Interface
Single Stage Single Stage Single Stage Single Stage
Pigtail Receptacle with FSI 1260-1650 >35 <0.7 >18 <0.9 Φ0.4~1.0 SS303/SS316/
SS304
LC
Pigtail Receptacle with FSI 1260-1650 >38 <0.6 >20 <0.8 Φ0.4~1.0 SS303/SS316/
SS304
LC
